One Compartment Model
Single IV Bolus - Simulation

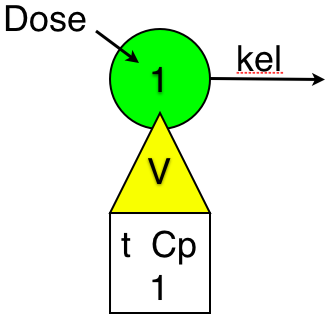

One compartment Model (kel/V)

Parameters

Dose - type 1 parameter, define the component receiving the dose
kel, Elimination Rate Constant - type 2 parameter, define the component receiving the drug (0 means the 'outside' not of interest) and the compenent loosing the drug (not 0).
V, Apparent Volume of Distribution - type 18 parameter, define the data set (by number), a short descriptor for the data set (or line) and the component sampled (enter 0 zero if time).

The file, onec_as.BAT. Copy the lines between the markers '--' but not the marker, starting with 'Boomer Batch File'. Paste into a new text document using a simple text editor such as Text Edit (Macintosh) or Notepad (Windows) and save as plain (ascii) text as onec_as.BAT. Start boomer and enter 1 or 3 to use a .BAT file. Enter the .BAT file name onec_as.

--
Boomer Batch File
    2                             wls,bayes,sim,irwls,sim+error,grid
    1                             Screen, diskfile
onec_as                                                     <- output to onec_as.OUT
    1                             Parameter type            <- start of Dose input
Dose
   100.0                          Parameter value
    1                             To                        <- into component 1
    0                             happy or not
    2                             Parameter type            <- start of kel input
kel
  0.1230                          Parameter value
    0                             To                        <- to outside
    1                             From                      <- from component 1
    0                             happy or not
   18                             Parameter type            <- start of V input
V
   12.30                          Parameter value
    1                             To                        <- only one data set, 1
[Drug]
    1                             From                      <- from component 1
    0                             happy or not
   -1                             Parameter type            <- end of model definition
    2                             Integration method        <- Fehlberg RKF45 - default
   0.000                          Relative error
   0.000                          Absolute error
Simulation - Once compartment IV Bolus
    1                             Data from disk or keyboard
   0.000                          X value
   0.000                          Y value
   1.000                          X value
   0.000                          Y value
   2.000                          X value
   0.000                          Y value
   4.000                          X value
   0.000                          Y value
   6.000                          X value
   0.000                          Y value
   9.000                          X value
   0.000                          Y value
   12.00                          X value
   0.000                          Y value
  -1.000                          X value                     <- end of data entry
    0                             Accept, correct, delete, insert, of
    0                             Continue or save data
    0                             AUC line number             <- no AUC calculation
    2                             Continue,save,plot,supplemental,sen
   -1                             wls,bayes,sim,irwls,sim+error,grid <- finish
--

When you open onec_as.OUT you should see the information below


 ** FINAL OUTPUT FROM Boomer (v3.3.6) **       4 July 2011 ---  8:31:54 am

 Title:  Simulation - Once compartment IV Bolus
 Input: From Keyboard
 Output:  To onec_as.OUT
 Data for [Drug]          came from keyboard (or ?.BAT)
 Fitting algorithm: Simulation
 Numerical integration method: 2) Fehlberg RKF45
          with  1 de(s)
 With relative error   0.1000E-03
 With absolute error   0.1000E-03

 This simulation took     0.1000E-01 seconds

 Model and Parameter Definition

  #  Name                    Value       Type From To     Dep  Start Stop

  1) Dose                =   100.0        1    0    1       0    0    0
  2) kel                 =  0.1230        2    1    0       0    0    0
  3) V                   =   12.30       18    1    1       0    0    0

 Data for [Drug]          :-

 DATA #   Time       Observed      Calculated    (Weight)  Weighted residual

     1    0.000       0.00000       8.13008       0.00000      -0.00000
     2    1.000       0.00000       7.18914       0.00000      -0.00000
     3    2.000       0.00000       6.35709       0.00000      -0.00000
     4    4.000       0.00000       4.97075       0.00000      -0.00000
     5    6.000       0.00000       3.88674       0.00000      -0.00000
     6    9.000       0.00000       2.68738       0.00000      -0.00000
     7    12.00       0.00000       1.85812       0.00000      -0.00000
      Plots of observed (*) and calculated values (+)
           versus time for [Drug]         . Superimposed points (X)

    8.130      Linear                      8.130      Semi-log
 |+                                      |+
 |                                       |
 |                                       |
 |                                       |   +
 |   +                                   |
 |                                       |      +
 |                                       |
 |      +                                |
 |                                       |
 |                                       |
 |                                       |            +
 |                                       |
 |            +                          |
 |                                       |
 |                                       |
 |                                       |                  +
 |                  +                    |
 |                                       |
 |                                       |
 |                                       |
 |                                       |
 |                           +           |
 |                                       |
 |                                       |                           +
 |                                    +  |
 |                                       |
 |                                       |
 |                                       |
 |                                       |
 |                                       |
 |*  *  *     *     *        *        *  |                                    +
 |_____________________________________  |*__*__*_____*_____*________*________*
    0.000                                  1.858
 0              <-->             12.     0              <-->             12.
