One Compartment Model
Oral Dose - Five Sites - Simulation

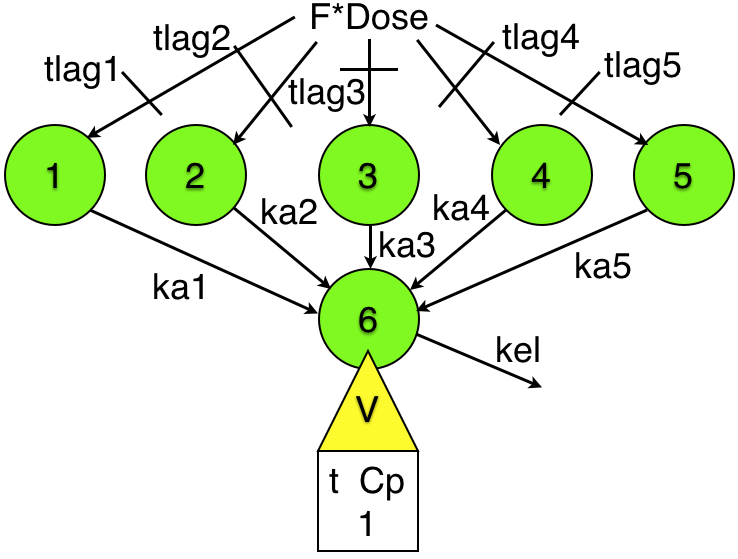

One compartment Model

Parameters

F*Dose - type 1 parameter, available dose (Dose x F) split into five components, 1, 2. 3, 4 and 5 (absorption site)
ka1,2,3,4,5 - one absorption rate constant for each component (absorption site)
tlag1,2,3,4,5 - one lagtime for each component (absorption site)
kel, Elimination Rate Constant - type 2 parameter, define the component receiving the drug (0 means the 'outside' not of interest) and the compenent loosing the drug (not 0).
V, Apparent Volume of Distribution - type 18 parameter, define the data set (by number), a short descriptor for the data set (or line) and the component sampled (enter 0 zero if time).

The file, onec_fs.BAT. Copy the lines between the markers '--' but not the marker, starting with 'Boomer Batch File'. Paste into a new text document using a simple text editor such as Text Edit (Macintosh) or Notepad (Windows) and save as plain (ascii) text as onec_fs.BAT. Start boomer and enter 1 or 3 to use a .BAT file. Enter the .BAT file name onec_fs.

--
Boomer Batch File
    2                             wls,bayes,sim,irwls,sim+error,grid
    1                             Screen, diskfile
onec_fs
    2                             Parameter type
ka1
   1.000                          Parameter value
    6                             To
    1                             From
    0                             happy or not
    2                             Parameter type
ka2
   3.000                          Parameter value
    6                             To
    2                             From
    0                             happy or not
    2                             Parameter type
ka3
   2.000                          Parameter value
    6                             To
    3                             From
    0                             happy or not
    2                             Parameter type
ka4
   2.000                          Parameter value
    6                             To
    4                             From
    0                             happy or not
    2                             Parameter type
ka5
   2.000                          Parameter value
    6                             To
    5                             From
    0                             happy or not
    2                             Parameter type
kel
  0.1230                          Parameter value
    0                             To
    6                             From
    0                             happy or not
   18                             Parameter type
V
   12.30                          Parameter value
    1                             To
[Drug]
    6                             From
    0                             happy or not
    0                             Parameter type
tlag1
   2.000                          Parameter value
    0                             happy or not
    0                             Parameter type
tlag2
   4.000                          Parameter value
    0                             happy or not
    0                             Parameter type
tlag3
   6.000                          Parameter value
    0                             happy or not
    0                             Parameter type
tlag4
   8.000                          Parameter value
    0                             happy or not
    0                             Parameter type
tlag5
   10.00                          Parameter value
    0                             happy or not
    1                             Parameter type
Dose1
   20.00                          Parameter value
    1                             Start interrupt number
    1                             To
    0                             happy or not
    1                             Parameter type
Dose2
   50.00                          Parameter value
    2                             Start interrupt number
    2                             To
    0                             happy or not
    1                             Parameter type
Dose3
   15.00                          Parameter value
    3                             Start interrupt number
    3                             To
    0                             happy or not
    1                             Parameter type
Dose4
   5.000                          Parameter value
    5                             Start interrupt number
    4                             To
    0                             happy or not
    1                             Parameter type
Dose5
   10.00                          Parameter value
    5                             Start interrupt number
    5                             To
    0                             happy or not
   -1                             Parameter type
    2                             Integration method
   0.000                          Relative error
   0.000                          Absolute error
One compartment - absorption from five sites
    1                             Data from disk or keyboard
   0.000                          X value
   0.000                          Y value
   1.000                          X value
   0.000                          Y value
   2.000                          X value
   0.000                          Y value
   2.230                          X value
   0.000                          Y value
   2.500                          X value
   0.000                          Y value
   2.750                          X value
   0.000                          Y value
   3.000                          X value
   0.000                          Y value
   4.000                          X value
   0.000                          Y value
   4.250                          X value
   0.000                          Y value
   4.500                          X value
   0.000                          Y value
   4.750                          X value
   0.000                          Y value
   5.000                          X value
   0.000                          Y value
   6.000                          X value
   0.000                          Y value
   6.250                          X value
   0.000                          Y value
   6.500                          X value
   0.000                          Y value
   6.750                          X value
   0.000                          Y value
   7.000                          X value
   0.000                          Y value
   8.000                          X value
   0.000                          Y value
   9.000                          X value
   0.000                          Y value
   10.00                          X value
   0.000                          Y value
   11.00                          X value
   0.000                          Y value
   12.00                          X value
   0.000                          Y value
  -1.000                          X value
    0                             Accept, correct, delete, insert, of
    0                             Continue or save data
    0                             AUC line number
    2                             Continue,save,plot,supplemental,sen
   -1                             wls,bayes,sim,irwls,sim+error,grid
--

When you open onec_fs.OUT you should see the information below


 ** FINAL OUTPUT FROM Boomer (v3.3.7) **      27 July 2011 ---  1:53:00 pm

 Title:  One compartment - absorption from five sites
 Input: From onec_fs.BAT
 Output:  To onec_fs.OUT
 Data for [Drug]          came from keyboard (or ?.BAT)
 Fitting algorithm: Simulation
 Numerical integration method: 2) Fehlberg RKF45
          with  6 de(s)
 With relative error   0.1000E-03
 With absolute error   0.1000E-03

 This simulation took     0.1000E-01 seconds

 Model and Parameter Definition

  #  Name                    Value       Type From To     Dep  Start Stop

  1) ka1                 =   1.000        2    1    6       0    0    0
  2) ka2                 =   3.000        2    2    6       0    0    0
  3) ka3                 =   2.000        2    3    6       0    0    0
  4) ka4                 =   2.000        2    4    6       0    0    0
  5) ka5                 =   2.000        2    5    6       0    0    0
  6) kel                 =  0.1230        2    6    0       0    0    0
  7) V                   =   12.30       18    6    1       0    0    0
  8) tlag1               =   2.000        0    0    0       0    0    0
  9) tlag2               =   4.000        0    0    0       0    0    0
 10) tlag3               =   6.000        0    0    0       0    0    0
 11) tlag4               =   8.000        0    0    0       0    0    0
 12) tlag5               =   10.00        0    0    0       0    0    0
 13) Dose1               =   20.00        1    0    1       0    1    0
 14) Dose2               =   50.00        1    0    2       0    2    0
 15) Dose3               =   15.00        1    0    3       0    3    0
 16) Dose4               =   5.000        1    0    4       0    5    0
 17) Dose5               =   10.00        1    0    5       0    5    0

 Data for [Drug]          :-

 DATA #   Time       Observed      Calculated    (Weight)  Weighted residual

     1    0.000       0.00000       0.00000       0.00000       0.00000
     2    1.000       0.00000       0.00000       0.00000       0.00000
     3    2.000       0.00000       0.00000       0.00000       0.00000
     4    2.230       0.00000      0.329232       0.00000      -0.00000
     5    2.500       0.00000      0.618929       0.00000      -0.00000
     6    2.750       0.00000      0.814883       0.00000      -0.00000
     7    3.000       0.00000      0.957411       0.00000      -0.00000
     8    4.000       0.00000       1.19883       0.00000      -0.00000
     9    4.250       0.00000       3.31862       0.00000      -0.00000
    10    4.500       0.00000       4.25127       0.00000      -0.00000
    11    4.750       0.00000       4.62199       0.00000      -0.00000
    12    5.000       0.00000       4.72685       0.00000      -0.00000
    13    6.000       0.00000       4.40356       0.00000      -0.00000
    14    6.250       0.00000       4.75385       0.00000      -0.00000
    15    6.500       0.00000       4.90367       0.00000      -0.00000
    16    6.750       0.00000       4.93389       0.00000      -0.00000
    17    7.000       0.00000       4.89339       0.00000      -0.00000
    18    8.000       0.00000       4.46564       0.00000      -0.00000
    19    9.000       0.00000       3.96902       0.00000      -0.00000
    20    10.00       0.00000       3.51294       0.00000      -0.00000
    21    11.00       0.00000       4.08020       0.00000      -0.00000
    22    12.00       0.00000       3.73984       0.00000      -0.00000
      Plots of observed (*) and calculated values (+)
           versus time for [Drug]         . Superimposed points (X)

    4.934      Linear                      4.934      Semi-log
 |                    +                  |                    +
 |                   + +                 |              ++  ++ +
 |              ++  +                    |             +    +     +
 |                        +              |                           +     +
 |                  +                    |                              +     +
 |             +                         |            +
 |                           +     +     |
 |                                       |
 |                                    +  |
 |                              +        |
 |            +                          |
 |                                       |
 |                                       |
 |                                       |
 |                                       |
 |                                       |
 |                                       |            +
 |                                       |
 |                                       |
 |                                       |         +
 |                                       |        +
 |                                       |
 |                                       |
 |            +                          |
 |                                       |       +
 |         +                             |
 |        +                              |
 |       +                               |
 |      +                                |
 |                                       |
 |X  X  X***  ****  ****  *  *  *  *  *  |      +
 |_____________________________________  |X__X__X***__****__****__*__*__*__*__*
    0.000                                 0.3292
 0              <-->             12.     0              <-->             12.
